Form & Function: Expression of Truth/Beauty

"Form follows function...It is the law." -Louis Sullivan

The primary architectural concept of this project is to explore form follows function as well as function follows form. Using tried and true bridge construction typologies, form and function can be dissected. A movable span requirement welcomes confrontation between form and function. The movable span of the bridge has a specific function that must be possible provided the form it takes. The bridge overall conforms to allow this moving function, while still respecting established bridge forms. In this way, the moving apparatus must fit into the existing form, yet its function influences the form of its housing mechanism.

Bridge Span Prototypes

Fire Island Inlet Bridge


Bridge Type: cable-stayed
Location: Robert Moses Causeway, NY

​

rm dia.jpg

​

Horace Wilkinson Bridge

30037476-baton-rouge-july-13-2013-mississippi-river-bridge-in-baton-rouge-usa-the-horace-w

Bridge Type: truss
Location: Baton Rouge, LA

​

hw dia.jpg

​

Tyne River Bridge


Bridge Type: arch
Location: Newcastle, England

​

tyne dia.jpg

​

Movement Analogies

Lobster Pliers

20210911_104814 (1).jpg

Spiral movement

​

wrench dia.jpg

​

Locking Pliers

20210911_110838 (1).jpg

Hinged movement

​

pliers dia.jpg

​

Eyelash curler

20210911_103159 (1).jpg

Sliding movement

​

curler dia.jpg

​

Conceptual 3x3 Combination Table

Lisa Hudson proj 1 assignment 3 table-page-001.jpg

Preliminary Designs

prelim design 1.jpg

Preliminary Design I

Fitting the function to the form

Preliminary Design II

Forming to fit the function

prelim design 2.jpg

Final Design


3D View

FRONT ELV.jpg

Elevation Down

FRONT ELV2.jpg

Elevation Mid

FRONT ELV3.jpg

Elevation Up


Mechanism Down


Mechanism Mid


Mechanism Up

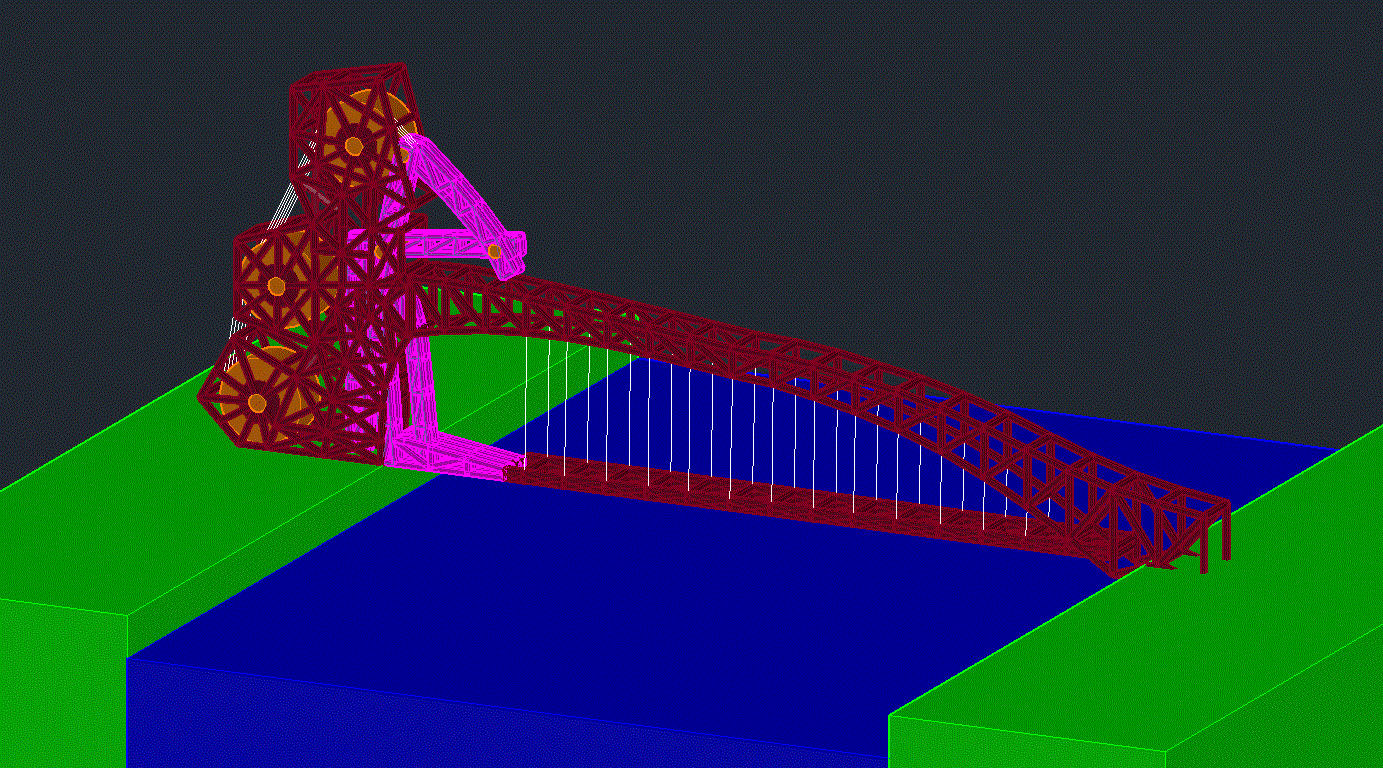

movement gif.gif

Movement
